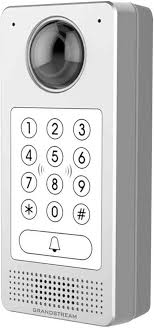

The Grandstream GDS3710 is a high-definition IP video door system that combines access control, video surveillance, and intercom functionalities into a single, robust device. Designed for both indoor and outdoor deployments, it is ideal for securing residential, commercial, and industrial facilities.
📸 Video & Camera Features
-
Camera: 2-megapixel CMOS sensor with advanced Image Signal Processor (ISP) for superior image quality.
-
Viewing Angle: 180° hemispheric lens for wall-to-wall coverage without blind spots.
-
Video Resolution: Supports up to 1080p Full HD video streaming.
-
Streaming Protocols: SIP/VoIP for 2-way audio and video streaming to smartphones, SIP phones, and IP PBX systems.
-
Video Compression: H.264 for efficient bandwidth usage.
🔊 Audio & Intercom
-
Microphone: Built-in HD microphone with Acoustic Echo Cancellation (AEC) and Automatic Noise Control (ANC).
-
Speaker: Integrated HD loudspeaker for clear audio output.
-
Intercom Functionality: Supports two-way audio communication for visitor interaction.
🔐 Access Control & Security
-
RFID Reader: Built-in RFID chip reader for secure, keyless entry.
-
Alarm Interfaces:
-
2 Alarm Inputs: For exit buttons and door sensors.
-
2 Alarm Outputs: For electric locks and sirens.
-
-
Motion Detection: Supports motion detection for enhanced security monitoring.
-
Tamper Detection: Alerts upon unauthorized access or tampering.
🌐 Network & Connectivity
-
Ethernet: 10/100 Mbps network port with integrated Power over Ethernet (PoE) support.
-
Power Supply: Supports both PoE and 12V DC power options.
-
Integration: Compatible with Grandstream’s GDS Manager software for centralized management.
🛡️ Durability & Environmental Resistance
-
Weatherproofing: IP66-rated metal casing for protection against dust and heavy rain.
-
Vandal Resistance: IK10-rated for resistance against mechanical impact.
-
Operating Temperature: -30°C to 60°C (-22°F to 140°F).
-
Humidity: 10% to 90% non-condensing.
