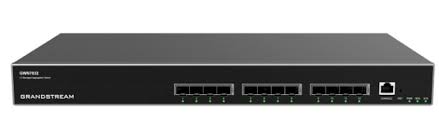

The Grandstream GWN7832 is a Layer 3 aggregation managed network switch designed for medium-to-large enterprises seeking scalable, secure, and high-performance networking solutions. It offers advanced features such as dynamic power allocation, robust security protocols, and flexible management options.
🔧 Key Specifications
-
Ports:
-
12 × 10 Gigabit SFP+
-
1 × Console port
-
-
Performance:
-
Switching capacity: 240 Gbps
-
Forwarding rate: 178.5 Mpps
-
MAC address table: 16K entries
-
Packet buffer: 12 MB
-
Forwarding mode: Store-and-forward
-
-
VLAN & QoS:
-
Supports up to 4,096 VLANs
-
Advanced QoS with queue scheduling (SP, WRR, WFQ, SP-WRR, SP-WFQ), traffic shaping, and rate limiting
-
Access Control Lists (ACLs) for Ethernet, IPv4, and IPv6
-
-
Routing Capabilities:
-
Static routing
-
Dynamic routing protocols: RIP, RIPng, OSPF, OSPFv3
-
-
Multicast Support:
-
IGMP Snooping
-
MLD Snooping
-
Multicast VLAN Registration (MVR)
-
-
Security Features:
-
ARP Inspection, IP Source Guard, DoS protection, port security, DHCP snooping
-
802.1X authentication, RADIUS, TACACS+ support
-
Loop protection including BPDU protection, root protection, and loopback protection
-
-
Management & Monitoring:
-
Local web user interface
-
Command-line interface (CLI) via SSH and Telnet
-
Grandstream Device Management System (GDMS)
-
GWN Manager (on-premise)
-
SNMP, RMON, LLDP/LLDP-MED support
-
Diagnostics including Ping, Traceroute, port mirroring, UDLD, and copper test
-
-
Physical & Environmental:
-
Mounting options: Desktop, wall, or rack-mountable (rack-mount brackets included)
-
Dimensions: 440 mm (L) × 200 mm (W) × 44 mm (H)
-
Weight: 2.67 kg
-
Operating temperature: 0°C to 45°C
-
Storage temperature: -10°C to 60°C
-
Operating humidity: 10% to 90% (non-condensing)
-
-
Power Supply:
-
Supports external redundant power supply (RPS): 12V/5A (60W) (optional)
-
-
Certifications:
-
CE, FCC, RCM, IC, UKCA
-
