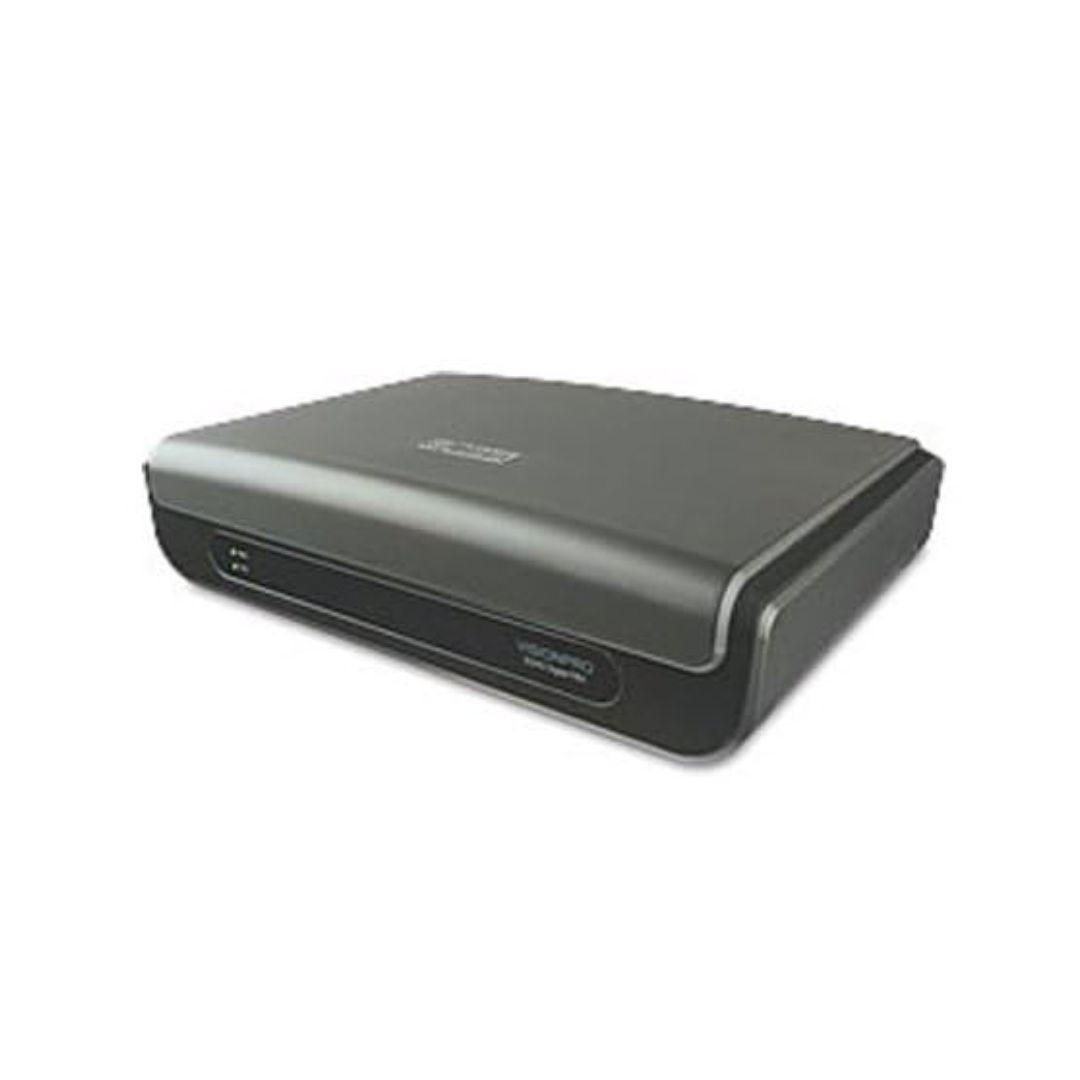

MATRIX VISION PRO 308 SYSTEM

Here is a detailed Specification for the Matrix VisionPro 308 System, formatted professionally for documentation, procurement, or technical reference:

Matrix VisionPro 308 – System Specification

General Overview:

The Matrix VisionPro 308 is a compact, feature-rich EPABX (Electronic Private Automatic Branch Exchange) system, ideal for small to medium-sized businesses. It supports a maximum of 3 trunks (CO lines) and 8 analog extensions, delivering essential telephony functions with reliability and ease of use.

System Configuration:

• Trunk Lines (CO Lines): 3

• Analog Extensions: 8

• Power Supply Requirement: 230V AC, 50 Hz

• Power Consumption: Approx. 18W

• Mounting Type: Wall-mountable

Key Features:

Telephony Features:

• 3-Party Conference:

  • Allows conferencing between any combination of internal and external callers.

• Auto Attendant:

  • Built-in voice guidance system for greeting and routing incoming calls without manual intervention.

  • Programmable voice messages.

• Auto Redial:

  • Automatically redials the last dialed number in case of a busy signal.

• Caller ID (CLIP):

  • Supports Caller ID display on both analog trunk lines and analog extensions.

  • Compatible with DTMF and FSK signaling formats.

• Call Transfer / Call Hold / Call Pick-Up

• Call Forwarding (Busy, No Answer, Unconditional)

• Do Not Disturb (DND)

• Hotline & Warm Line

• Extension Numbering:

  • Flexible numbering plans for ease of use.

Music and Messaging:

• External Music Port (MOH):

  • Allows connection of an external music source for music-on-hold.

• Music on Hold / Background Music:

  • Enhances caller experience while on hold or waiting.

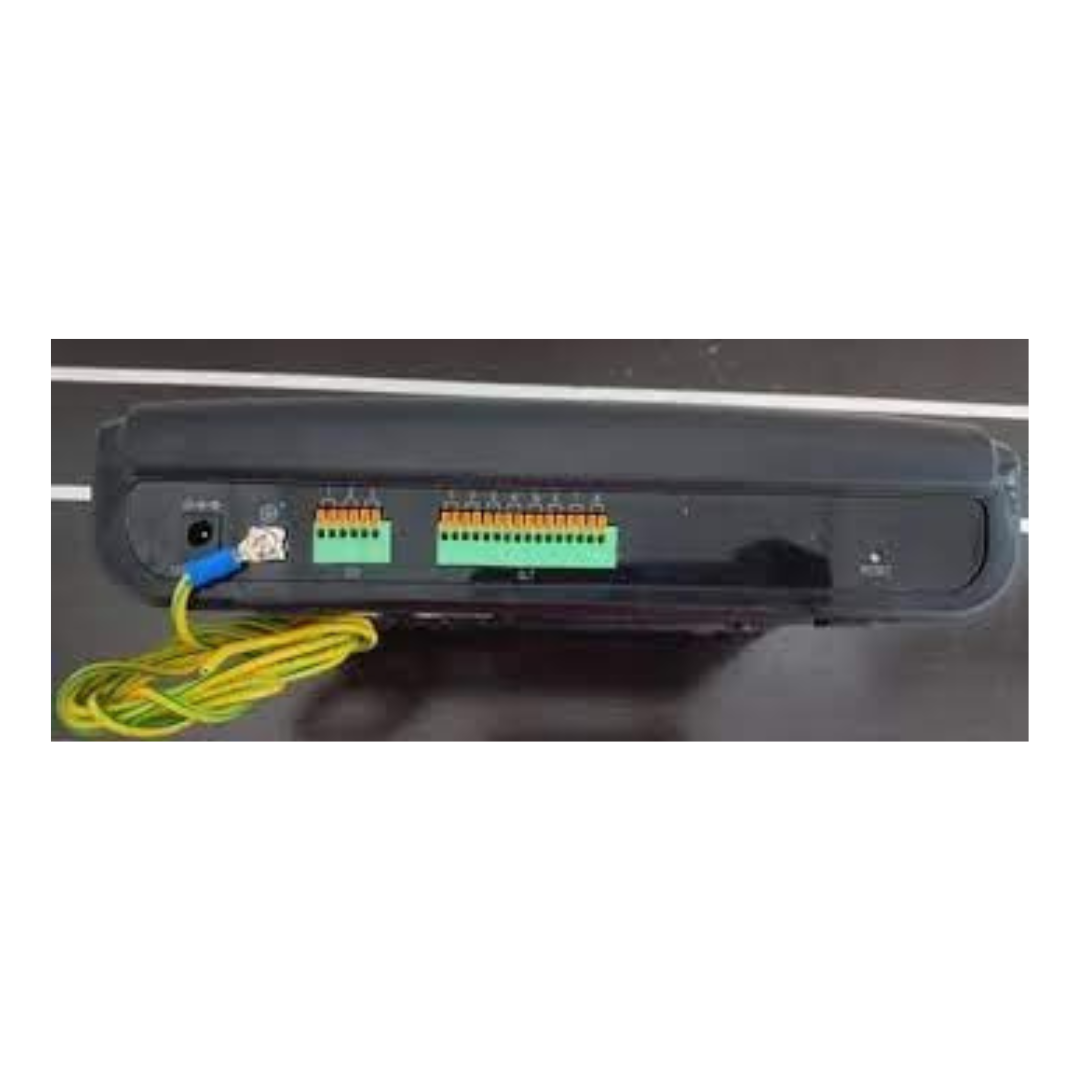

Hardware & Interfaces:

• 1 Port PFT (Power Failure Transfer):

  • Ensures one designated analog extension remains connected to the PSTN during a power outage.

  • Provides basic call functionality in emergency situations.

• Remote Maintenance:

  • Configuration and diagnostics can be performed remotely via PC software or modem.

  • Minimizes downtime and reduces service visits.

• Battery Backup Support:

  • Compatible with external UPS for power redundancy.

Physical & Environmental:

• Dimensions: Approx. 275mm (W) x 210mm (H) x 75mm (D)

• Weight: Approx. 2 kg

• Operating Temperature: 0°C to 45°C

• Humidity: 10% to 90% non-condensing
