The Onetouch OT-IP-VDP-V9 is a 7-inch Smart SIP Video Door Phone designed for modern residential and commercial applications. It offers advanced features such as SIP-based communication, high-resolution video, and smart integration capabilities.

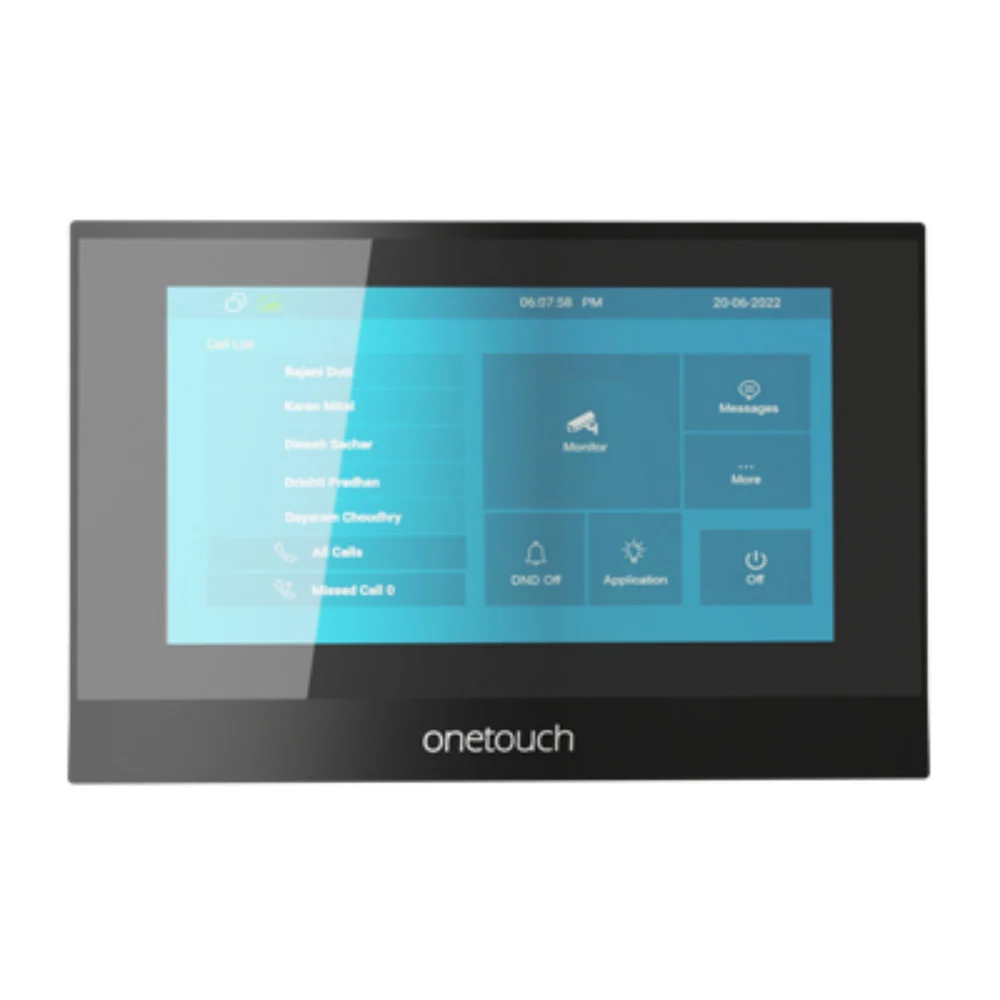

📱 Indoor Unit (Monitor)
-
Display: 7-inch high-resolution touch screen
-
Operating System: Android 6.0
-
Resolution: 1280 x 800 pixels
-
Connectivity:
-
Wired LAN
-
Wireless LAN (Wi-Fi)
-
-
Power over Ethernet (PoE): 802.3af
-
Home Automation Integration: Yes
-
Contact Directory: Yes
-
Alarm Zones: Built-in 8-zone alarm
-
Storage:
-
SD card slot for video and image recording
-
-
Color Options: Black and Silver
-
Country of Origin: Made in India
📷 Outdoor Unit (Doorbell Camera)
-
Camera:
-
2MP CMOS sensor
-
Viewing Angle: 125° (horizontal) / 69° (vertical)
-
Video Resolution: 1920 x 1080p
-
-
Night Vision: White LED illumination
-
Card Access:
-
Built-in Mifare 13.56 MHz card reader
-
Bluetooth Low Energy (BLE) support
-
-
Vandal Protection: Vandal alarm feature
-
Relay Ports:
-
2 relay outputs
-
1 relay input
-
-
Audio: Built-in speaker and microphone with echo cancellation
-
Network Interface:
-
10/100 Mbps LAN Ethernet
-
Optional wireless connectivity
-
-
Power: PoE 802.3af / 12V DC
-
Operating Temperature: -10°C to +55°C
-
Ingress Protection: IP65 rated
-
Installation: Wall mount
-
Size: 146 x 70 x 23 mm
