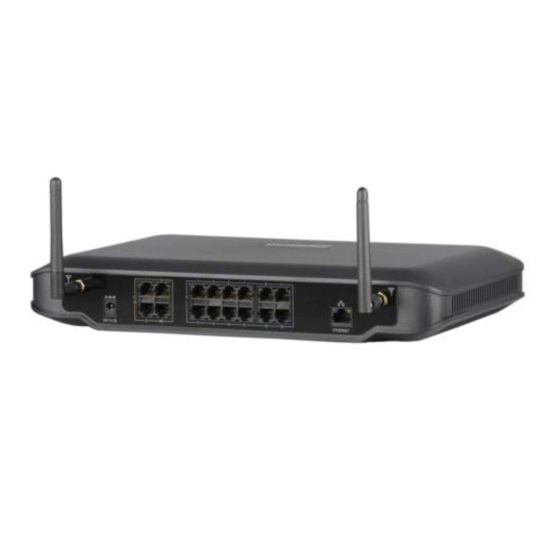

The Matrix ETERNITY NENX312 is a compact and versatile hybrid IP-PBX system designed for small to medium-sized businesses. It seamlessly integrates analog, GSM/3G/4G, and VoIP networks, providing a unified communication platform. Below are its detailed specifications:
🔧 Technical Specifications
-
Analog Trunk Ports (FXO): 3
-
Analog Extension Ports (FXS): 12
-
GSM/3G/4G Ports: 2 (optional)
-
SIP Trunks: 8
-
IP Users: Supports up to 50 SIP users (10 built-in; additional licenses required for more)
-
VoIP Channels: 8
-
Maximum IP to IP Calls: 25
-
Maximum IP to TDM Calls: 8
-
Voicemail Channels: 4 (optional license required)
-
Voicemail Mailboxes: 36
-
Voice Messages: 16 modules of 14 seconds each for auto-attendant and voice prompts
🌐 Network & Protocol Support
-
VoIP Protocols: SIP, SDP, RTP, SRTP
-
Transport Protocols: UDP, TCP, TLS
-
Network Protocols: IPv4, IPv6, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN
-
Codecs Supported: G.711 (A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC
-
DTMF Support: RTP (RFC2833), SIP Info, In-Band
📦 Physical & Environmental
-
Dimensions (W x H x D): 320.2 mm x 51.1 mm x 208.1 mm
-
Weight: Approximately 1.2 kg
-
Power Supply: 24V DC, 2.5 Amp
-
Power Consumption: 15W
-
Operating Temperature: 0°C to 45°C
-
Operating Humidity: 5% to 95% RH, Non-Condensing
-
Mounting Options: Wall Mount, Table-Top, 1U Rack Mount
