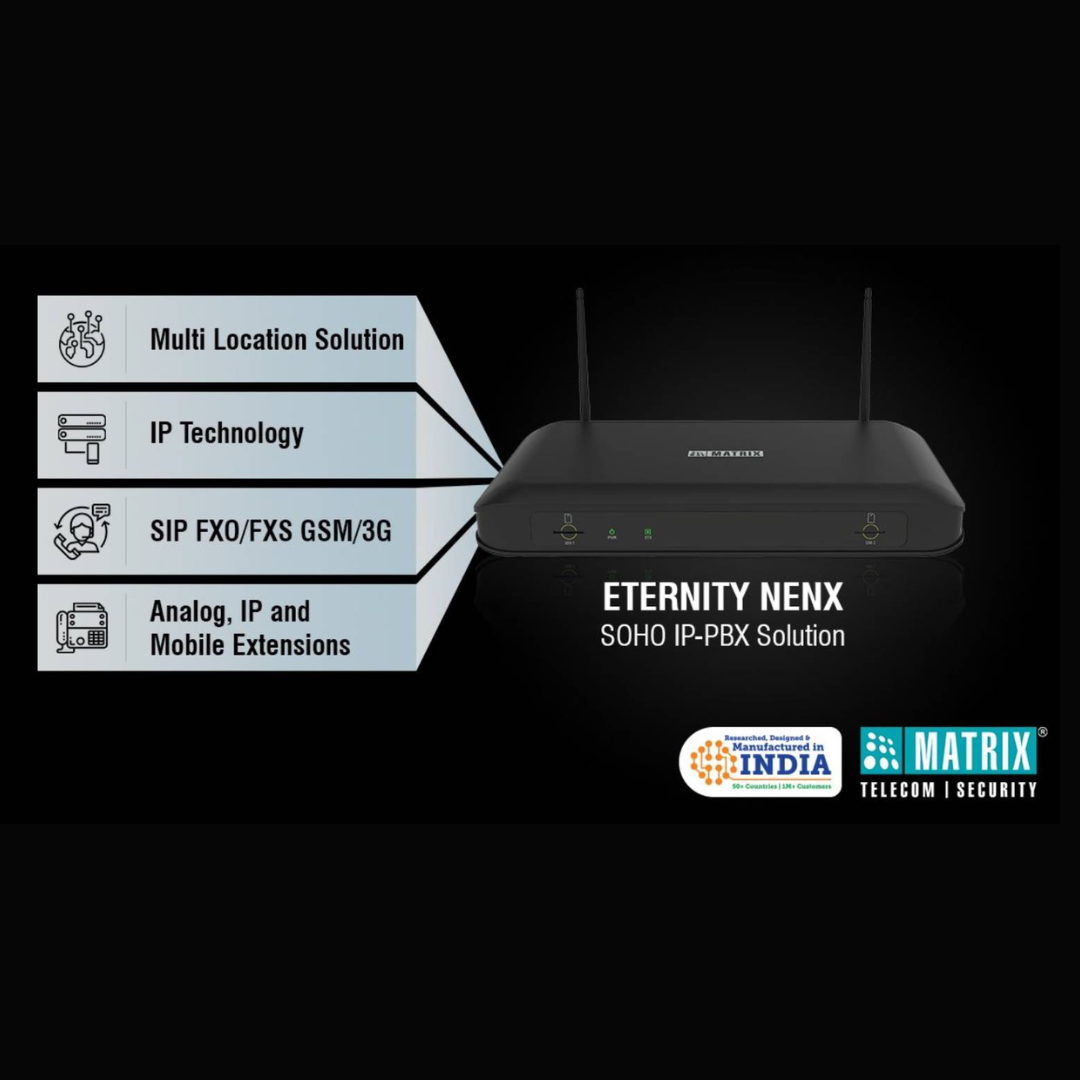

The Matrix ETERNITY NENX416 is a hybrid IP-PBX system designed for small to medium-sized businesses, offering a blend of traditional telephony and modern IP-based communication. Below are its key specifications:
🔧 Technical Specifications
-
FXO Ports (CO Lines): 4
-
FXS Ports (Analog Extensions): 16
-
GSM/3G/4G Ports: 2
-
IP Users: Up to 50
-
VoIP Trunks (SIP): 8
-
Maximum VoIP Channels: 8
-
Maximum IP to IP Calls: 25
-
Maximum IP to TDM Calls: 8
-
Conference Calls: 6-party conferencing
-
Video Calls: Up to 8 simultaneous calls
🌐 Network & Protocol Support
-
VoIP Protocols: SIP, SDP, RTP, SRTP
-
Network Protocols: IPv4, IPv6, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN
-
Transport Protocols: UDP, TCP, TLS
-
Codecs Supported: G.711 (A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC
-
DTMF Support: RTP (RFC2833), SIP Info, In-Band
📦 Physical & Environmental
-
Dimensions (W x H x D): 320.2 mm x 51.1 mm x 208.1 mm
-
Weight: Approximately 1.26 kg (2.77 lbs)
-
Power Supply: 24V DC, 2.5 Amp
-
Power Consumption: 15W
-
Operating Temperature: 0°C to 45°C
-
Storage Temperature: -20°C to 65°C
-
Operating Humidity: 5% to 95% RH, Non-Condensing
-
Mounting: 1U Rack Mounting
