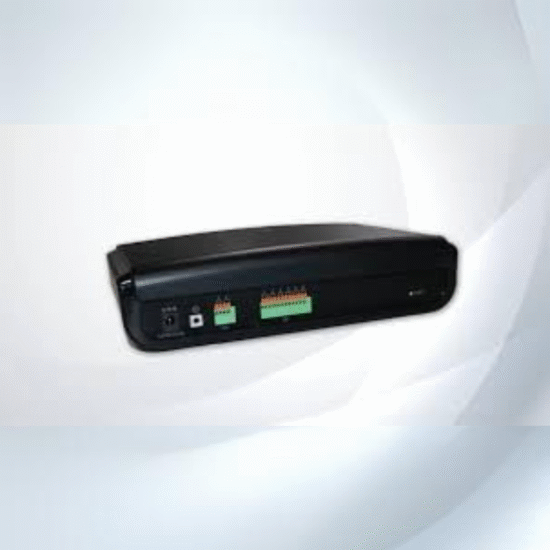

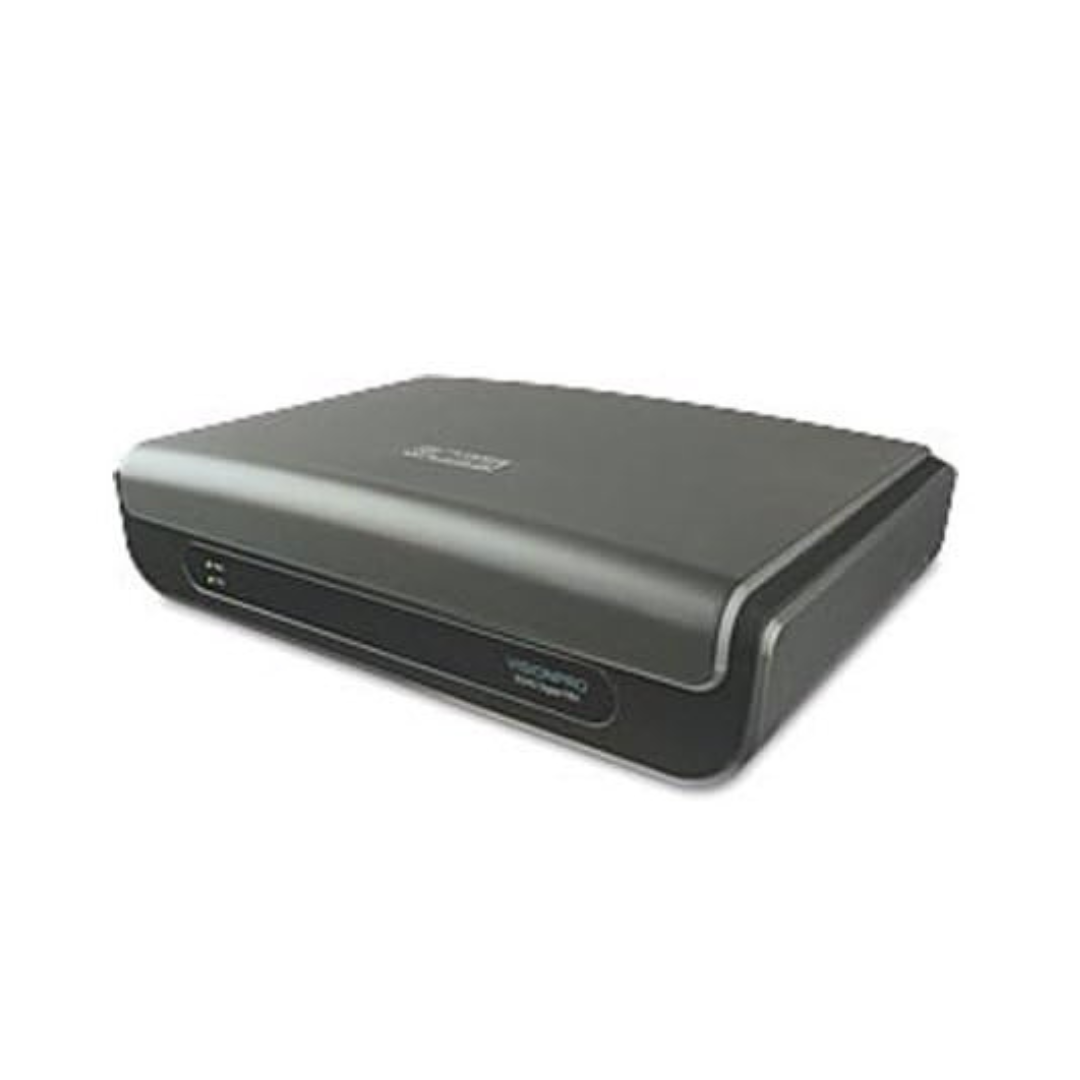

MATRIX VISION PRO 206 SYSTEM

Here is the formal Specification of the Matrix VisionPro 206 System, ideal for technical documentation, procurement use, or project proposals:

Matrix VisionPro 206 – System Specification

General Overview:

The Matrix VisionPro 206 is a cost-effective, compact EPABX (Electronic Private Automatic Branch Exchange) system designed for small office/home office (SOHO) and small business environments. It supports 2 CO (trunk) lines and 6 analog extensions, offering a wide range of essential telephony features in a reliable and user-friendly package.

System Configuration:

• Trunk Lines (CO Lines): 2

• Analog Extensions: 6

• Power Supply Requirement: 230V AC, 50 Hz

• Power Consumption: Approx. 15W

• Mounting Type: Wall-mountable

Key Features:

Telephony Functions:

• 3-Party Conference:

  • Built-in conferencing capability for up to three participants.

  • Can include any combination of internal and external users.

• Auto Attendant:

  • Interactive voice menu system for greeting and routing calls.

  • Customizable voice messages.

• Auto Redial:

  • Automatically retries busy numbers until connected or a set number of attempts are reached.

• Caller ID Support (CLIP):

  • Displays caller ID on analog extensions and trunks.

  • Supports both DTMF and FSK formats.

• Call Forwarding (Unconditional, Busy, No Answer)

• Call Transfer, Call Pick-Up, Call Hold

• Hotline & Warm Line

• Do Not Disturb (DND)

• Flexible Extension Numbering

Audio & Messaging:

• External Music Port (MOH):

  • Interface to connect an external music source for music-on-hold functionality.

• Music on Hold & Background Music:

  • Enhances the caller experience while on hold or during idle periods.

Reliability & Maintenance:

• 1 Port Power Failure Transfer (PFT):

  • Maintains basic telephony on one extension during power failure.

  • Directly connects the trunk line to a designated extension in such cases.

• Remote Maintenance:

  • System configuration and diagnostics can be performed remotely via PC or modem.

  • Reduces service downtime and on-site visit requirements.

• Battery Backup Support:

  • Compatible with external UPS for uninterrupted power during outages.

Physical & Environmental:

• Dimensions: Approx. 275mm (W) x 210mm (H) x 75mm (D)

• Weight: Approx. 1.8 kg

• Operating Temperature: 0°C to 45°C

• Humidity: 10% to 90% RH, non-condensing
