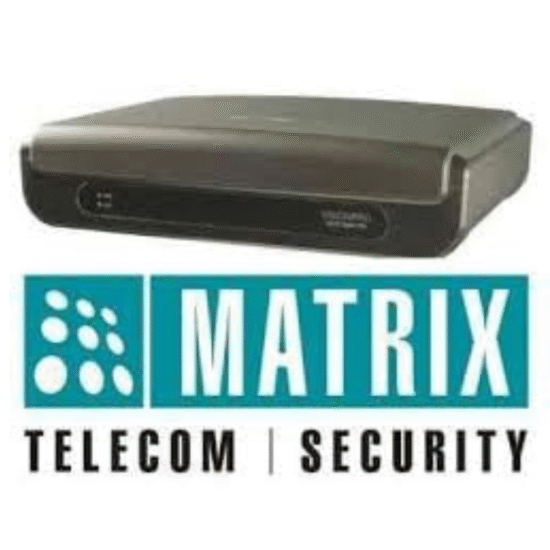

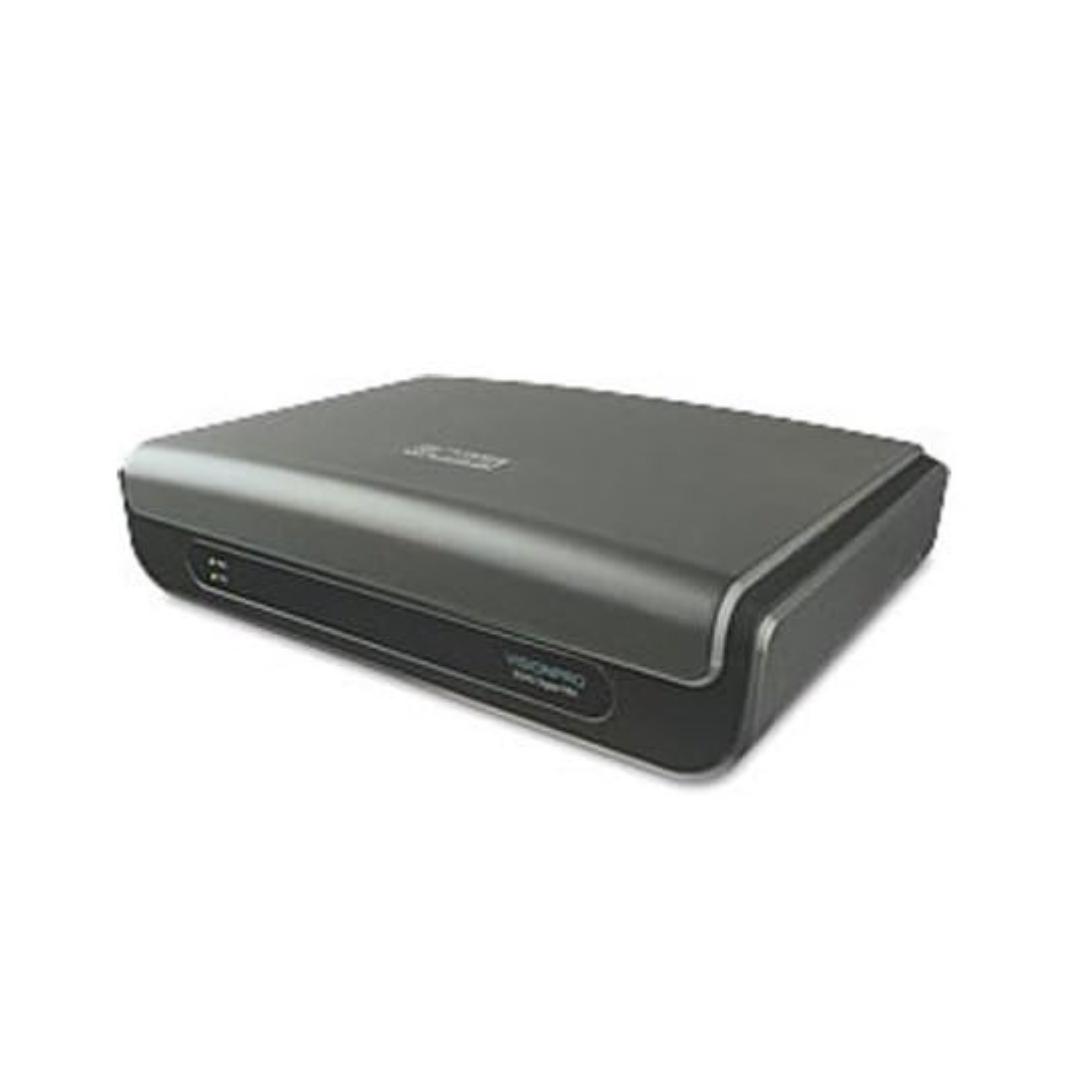

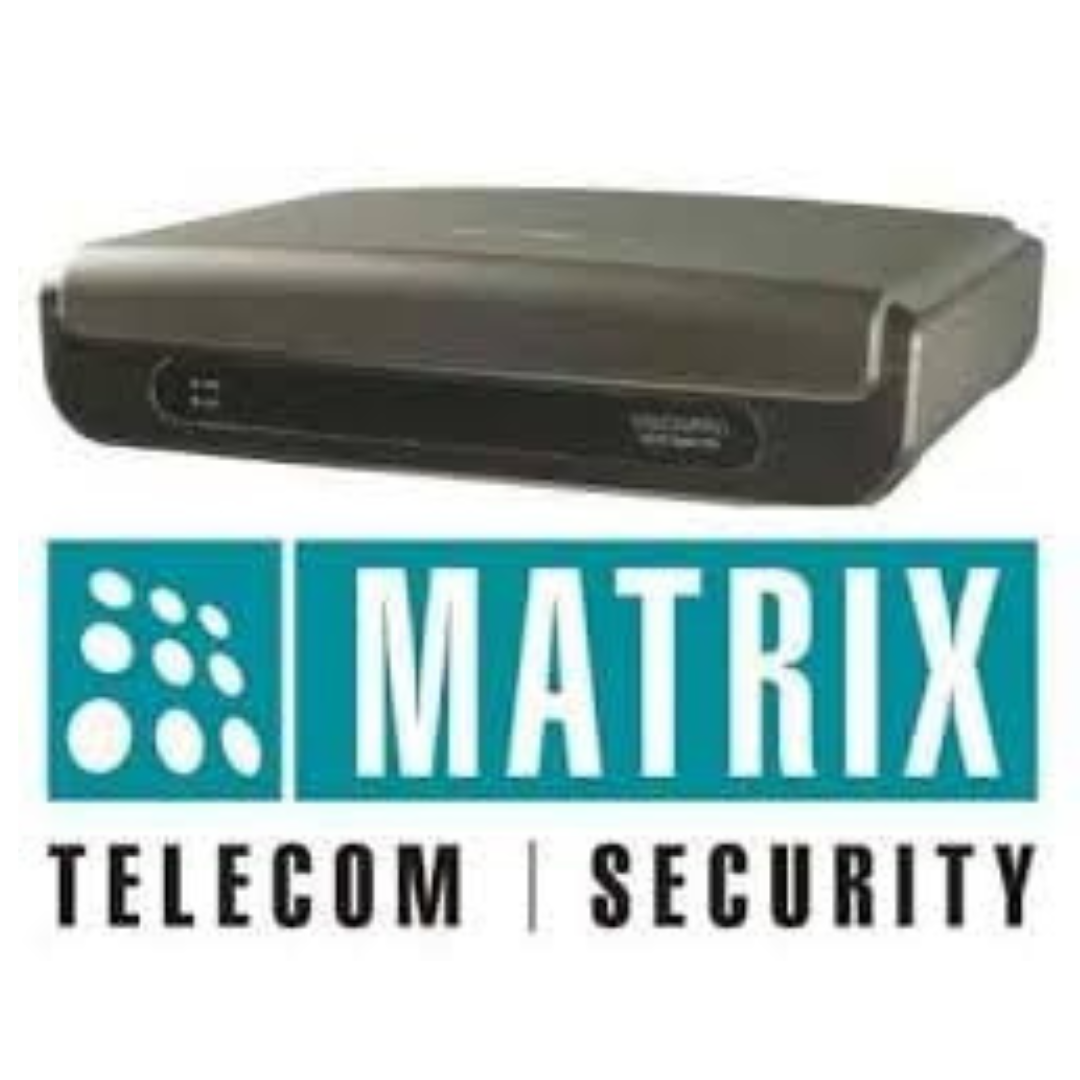

The Matrix VISIONPRO 412 is a compact digital PBX system designed for small offices, home offices, clinics, and similar setups. It offers a blend of traditional telephony features with modern digital capabilities, ensuring efficient communication and call management. Below are its detailed specifications:
🔧 Technical Specifications
-
Trunk Lines (CO Lines): 4
-
Analog Extensions (FXS Ports): 12
-
Switching Type: PCM/TDM, Digital Switching, 100% Non-blocking
-
Processor: 16-bit DSP
-
Signaling: Loop Start
-
Dialing Modes: DTMF and Pulse (10/20 PPS)
-
Caller Line Identification (CLI): Supports DTMF and FSK (ITU-T V.23 & Bellcore 202)
-
Transmission Level Adjust:
-
Transmit Gain: -15 dB to +10 dB
-
Receive Gain: -15 dB to +10 dB
-
-
Ringing Voltage: Trapezoidal 50 VRMS/25 Hz and Sinusoidal 52 VRMS/25 Hz
-
Protection: Over Voltage and Over Current Secondary Protection
-
Physical Connector: 2.54 mm Push Type Connector
⚙️ Mechanical & Environmental
-
Power Supply: External Adapter 12 V DC @ 2 A
-
Power Consumption: Maximum 28.44 W
-
Dimensions (W x H x D): 23.1 cm x 16.25 cm x 5.5 cm (9.09” x 6.4” x 2.17”)
-
Unit Weight: Approximately 0.65 kg (1.43 lbs)
-
Shipping Weight: Approximately 1.2 kg (2.64 lbs)
-
Operating Temperature: 0°C to 50°C (32°F to 122°F)
-
Operating Humidity: 0% to 95% RH, Non-Condensing
-
Mounting: Wall Mount
📘 Key Features
-
Abbreviated Dialing: Store and dial frequently used numbers quickly.
-
Auto-Attendant: Automated call handling with customizable voice messages.
-
Caller Line Identification (CLI): Identify incoming callers using DTMF and FSK signaling.
-
Conference Calling: 3-party conferencing to facilitate group discussions.
-
Direct Inward Dialing (DID): Allows external callers to reach internal extensions directly.
-
Flexible Numbering: Supports 1 to 4-digit extension numbers.
-
Least Cost Routing (LCR): Optimizes call routing to reduce communication costs.
-
Remote Programming: Configure the system remotely using a standard telephone.
-
Voice Messages: Store up to 240 seconds of voice messages in 16 parts of 15 seconds each.
-
Walk-In Class of Service: Allows users to access specific services from any extension.
